DEMO Xerox 8850 Engineering Copier Color Scanner

Please check for current availability and options by calling or sending us an email.
All items and options shown are subject to availably as our inventory moves quickly.

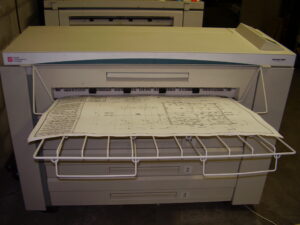

Repos4resale has just received a VERY LOW METERED only 120K Xerox 8850 DDS Synergix Engineering Copier / Plotter / Scanner System.Comes with 10D’s per minute, 3 roll paper drawers & Xerox controller. The scanner can be enabled to scan in color by purchasing a software key from Xerox. This system sold new for well over $30,000.00!! Save big time on buying this industry leading engineering solution here! Ref.# 156.

Item Features/Specifications:

Product Overview
The Synergix 8850 Printer offers incredible image quality for busy departments working at full speed. Printing up to 10 D size prints per minute, it represents a new benchmark in its class.
The new Synergix 8850 features MicroDensity Technology which incorporates Xerox patented developer technology, finer toner particles and a new fusing system for spectacular results. Lines are finer and crisper for high precision and halftones are superior with 256 levels of gray.
This unique technology enables the Synergix 8850 to handle even the most demanding tests of clarity – including maps, color renditions, markups, and high contrast documents.Features

Advanced scanning and printing technology combine to deliver
accurate halftones and solid area fills
Time saving features include job recall, electronic collation and
auto reduction and enlargement
Fully integrated finishing with an optional Online Folder and
High Capacity Stacker
Available soon – color scan-to-net (via simple software upgrade)

Synergix 8850 Digital Solution Features

Auto port sensing, Auto data format recognition, Auto scaling, Auto rotation, Auto size detection, Auto roll select and switch, Remote printer administration, Prioritized job queuing, Remote job queue management, Electronic collation, 9 pen palettes (256 pens each), 64 pen patterns, including 15 user-definable patterns, Plot labeling with automatic naming and time/date generation, Banner pages, Page composition/plot overlay, Plot stamping with user-downloadable stamps, 10 user setups, 256 gray scales, Media mismatch management, Plot nesting.


Printer
Process/Imaging	Xerographic LED
Photoreceptor	Organic
Media Supply	3 Rolls, 500 ft; manual sheet bypass
Media Type	Bond, Vellum, Film
Output Size	Min: 8 1/2 x 11 inchesMax: 36 inches x 80 feet Standard
Resolution	400 dpi
Process Speed	4.5 ips
Throughput	Up to 10 D / 5 E’s per minute
Power Requirements	60 Hz: 115 V / 16 A; 50/60 Hz: 220/230-240 V / 10 A
Weight	Approx: 625 lbs
Dimensions	43” H x 57” W x 23” D
Finishing	Standard – Catch Tray-50 E/ 100 D; Optional – Stacker 1000-up to 1000 mixed size prints; online Folder
Safety Certifications	UL 1950, CNL C22.2 No. 950-M93, Low Voltage Directive 72/23/EEC, CE Marking Directive 93/68/EEC, FCC Part 15 Subpart B (Class A), ICES-003, Issue 3:1997 (Class A), EMC Directive 89/366/EEC
AccXES™ Controller
CPU	Power PC 740, 200 MHz
Power	110/220 V
Memory	64 Mb standard; Expandable to 192 Mb
Hard Disk	Standard – 9.1 Gb Ultra Wide SCSI, 7200 rpm, internal drive
Data Formats	HP-GL; HP-GL/2; HP-RTL; CGM (Level 1 with ATA ext.);C4; FileNET; XES 150 Emulation; Versatec Data Standards (VRF, ordered vector, blocked raster,compacted raster); CalComp 906/907/951/PCI; TIFF 6.0; NIRS; CALS 1 & 2; VCGL; Compression types (for applicable raster formats): CCITT G4, G3-1D, G3-2D,Packbits, RLE, Seed Row, Adaptive; Optional Adobe PostScript 3 with PDF support
Interfaces	Standard – Serial RS-232, IEEE 1284 Bi-directional Centronics; Ultra wide SCSI; VPI; 10/100 Ethernet (TCP/IP) supports 10/100 BaseT Optional – External print server
Network Protocols	Standard – TCP/IP with lpr/lpd Optional- Novell, Ethertalk, NetBEUI and others supported through external print server
Client Software	ADI and HDI print drivers for AutoCAD R14, AutoCAD 2000 & 2000I Print drivers for Windows 95/98/2000/NT. Web Printer Manager Tool using Netscape Navigator 4 or Microsoft IE 4 or later Document Submission Tool for Windows 95/98/2000/NTand Solaris Optional – Adobe PostScript 3 drivers for Windows95/98/2000/NT
Synergix Scan System
Resolution	400 x 400 dpi
Copy / Scan Speed	4 ips at 400 dpi (copy and scan) 8 ips at 200 dpi (scan)
Input	Min 4 1 /2 x 5 1 /2 inches Max 42 inches x 100 feet (only captures 36″ of image) Thick documents up to 1 /2 inch
Edge / Center Adjustment	Lead and trail edge adjust / center alignment
Scan-to-Net	Standard; Indexing; Scan preview; Link to raster editor; Resolution selection; TIFF 6.0 or CALS data format; TCP/IP Ethernet interface; Line or grayscale modes
Power Requirements	50/60 Hz; 120/240 V; 10A
Dimensions	W 53″ H 45″ D 16″ with Stand
Safety Certifications	UL 1950, CNL C22.2 No. 950-M93, Low Voltage Directive 72/23/EEC, CE Marking Directive 93/68/EEC, FCC Part 15 Subpart B (Class A), ICES-003, Issue 3: 1997 (Class A), EMC Directive 89/366/EEC
Copier
Reduction / Enlargement	25 to 400% in 0.1% increments
Output Selection	Auto/manual roll selection and scaling
Concurrency	Scanning/copying/printing; Printer interrupt key
Digital Retention	Up to 999 copies from a set of at least 100 standard E size drawings
Sets Build	Electronic collation; Forward; Reverse; Last job recall; Rescale and reprint without rescanning; 999 copies; Batch mode
Imaging	Inverse, Mirroring; Transform; Rotation; 7 copy contrast levels
Image Quality	Automatic dynamic background suppression / Automatic width detection of original
Copy Modes	Line; Mixed; Photo
Client Software	Document Retrieval Tool for Windows 95/98/2000/NT and Solaris
Options
	External Print Server, Expandable Memory to 192 Mb, Adobe PostScript 3 (includes PDF support), Stacker 1000, Online Folder, Compact scanner catch tray
